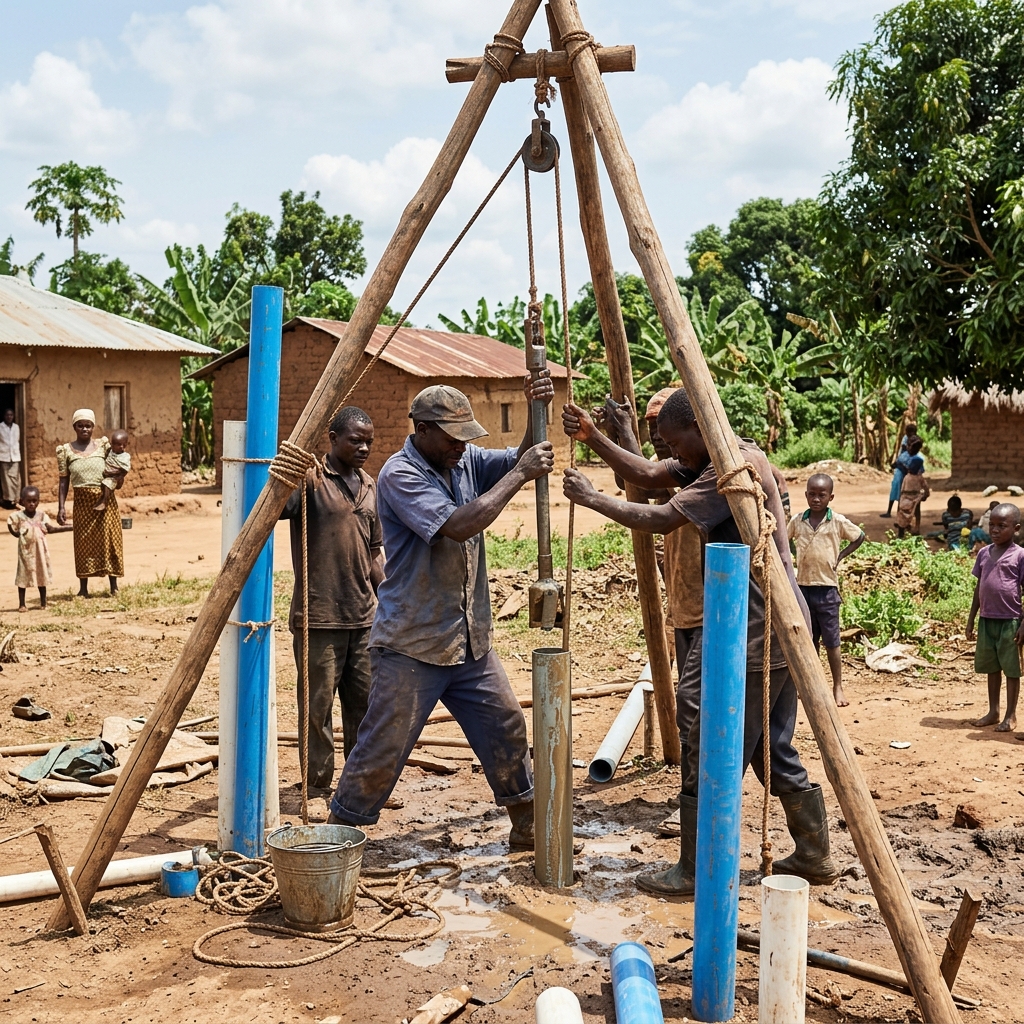

Manual Well Drilling Overview¶
Manual drilling refers to human-powered techniques used to bore holes into shallow-to-medium depth aquifers (typically 10m to 40m). These methods require zero heavy truck transport, making them ideal for remote rural villages with soft or semi-consolidated formations.
⚠️ Important: Drilling Labor vs. Turnkey Water Point Costs¶
A common mistake in rural WASH planning is confusing the cost of drilling the hole with the total turnkey cost of a functioning, safe community water point.
A complete, contaminated-free well requires well casing, screen, filter gravel pack, sanitary bentonite grout, a reinforced concrete apron/plinth, drainage trough, soakaway pit, pumping hardware, and water quality testing:
┌─────────────────────────────────────────────────────────────────────────────┐
│ COMPLETE RURAL WELL BILL OF QUANTITIES (BoQ) │
├──────────────────────────────────────────────────────┬──────────────────────┤
│ ITEM / COMPONENT │ TYPICAL COST (USD) │
├──────────────────────────────────────────────────────┼──────────────────────┤
│ 1. Drilling Labor & Rig Consumables (20m - 30m) │ $150 – $350 │
│ 2. Well Casing & Slotted Screen (Class 9/10 PVC) │ $180 – $350 │
│ 3. Graded Silica Gravel Pack & Sanitary Cement Grout │ $60 – $120 │
│ 4. Reinforced Concrete Apron, Plinth & Soakaway Pit │ $150 – $300 │
│ 5. Pumping Mechanism: │ │
│ • Low-Cost Rope / EMAS Pump │ $80 – $150 │
│ • Standard Afridev / India Mark II Pump │ $600 – $950 │
│ 6. Initial Water Quality Testing & Community Training│ $50 – $150 │
├──────────────────────────────────────────────────────┼──────────────────────┤
│ TOTAL TURNKEY COMPLETED WATER POINT: │ │
│ • Manual Well + Rope Pump (Family / Cluster Scale) │ $650 – $1,250 USD │
│ • Manual Well + Afridev / India Mk II (Comm. Scale) │ $1,250 – $2,200 USD │
│ • Mechanized Deep Borehole + Afridev (Bedrock) │ $3,500 – $8,000 USD │
└──────────────────────────────────────────────────────┴──────────────────────┘
Comparison of Manual Drilling Systems¶
| Method | Max Depth | Soil Suitability | Crew Size | Rig CapEx | Complete Turnkey Well Cost |
|---|---|---|---|---|---|
| Baptist Method | 35m | Sand, Clay, Soft Sandstone | 3–4 | $250 USD | $650 – $1,800 USD |
| EMAS Method | 30m | Soft to Medium Sediments | 2–3 | $150 USD | $500 – $1,200 USD |
| Mzuzu Sludge | 25m | Alluvial Loam & Fine Sand | 3–4 | $200 USD | $600 – $1,400 USD |
| Rota-Sludge | 35m | Sticky Clays & River Silts | 4–6 | $350 USD | $750 – $1,800 USD |
| Hand Augering | 15m | Cohesive Clays (Dry/Semi-wet) | 2–3 | $100 USD | $400 – $1,000 USD |
| Manual Jetting | 25m | Loose Sands & Coastal Aquifers | 3–5 | $400 USD | $600 – $1,500 USD |
